KetcauSoft / WEFLY Structure JSC

KCS Building Analysis

From DWG drawings to structural analysis.

Build models directly from DWG files, automate wall loads, check members and export model views to PDF.

Explore KBA Download

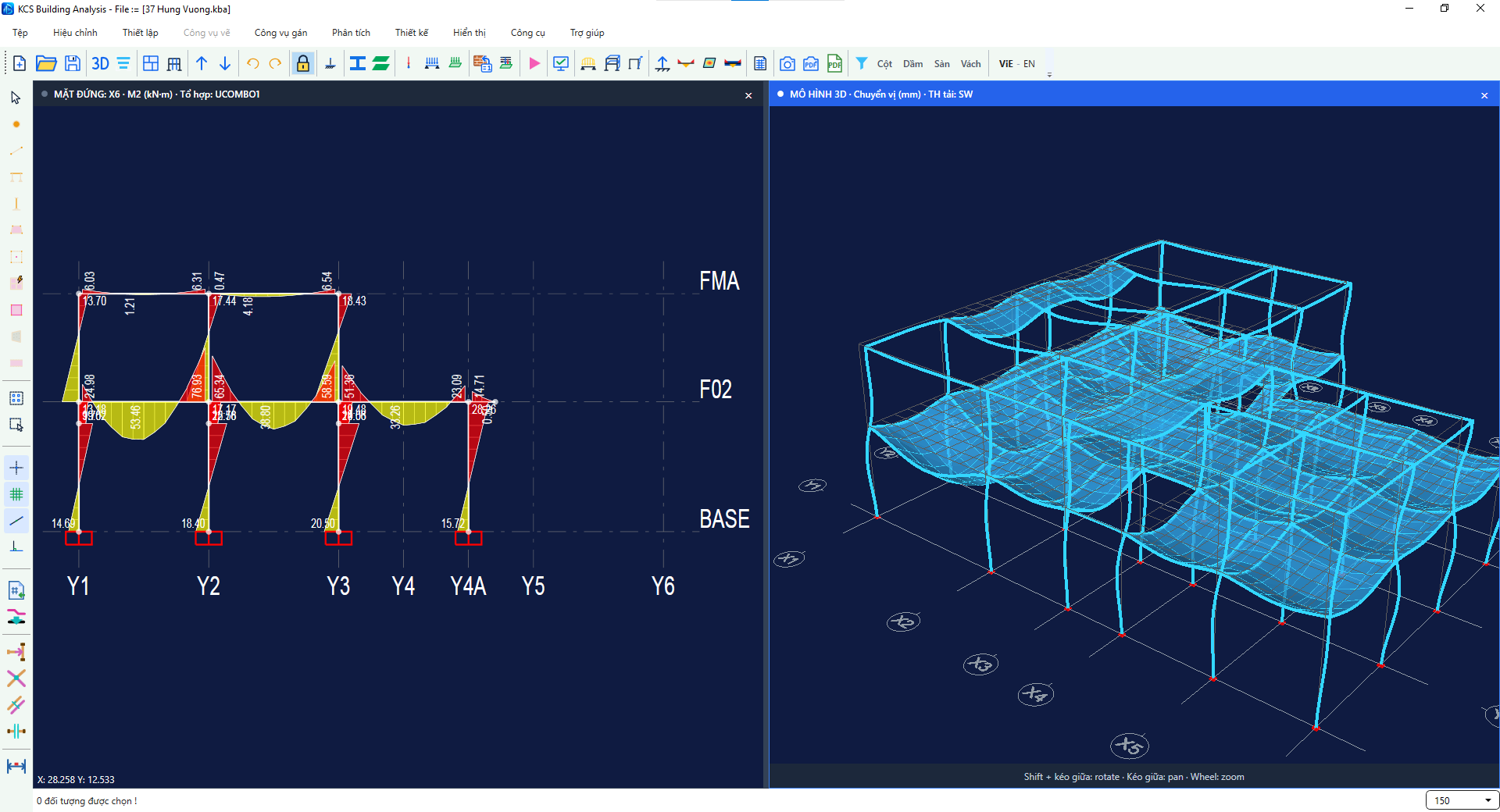

KCS Building Analysis showing a 3D structural model alongside frame bending moment results
KBA — structural model and analysis resultsEnlarge: KBA — structural model and analysis results

Our software

Three products from KetcauSoft.

Building analysis

KCS Building Analysis

From DWG-based modelling to member checks and PDF output.

  • Build models quickly with DWG extraction and direct interaction with DWG files.
  • Automatically calculate and assign wall loads from the wall construction build-up.
  • Check reinforced-concrete and steel members to ACI, EC, IS and TCVN standards.
  • Easily export model views to PDF.
Product information : KCS Building Analysis

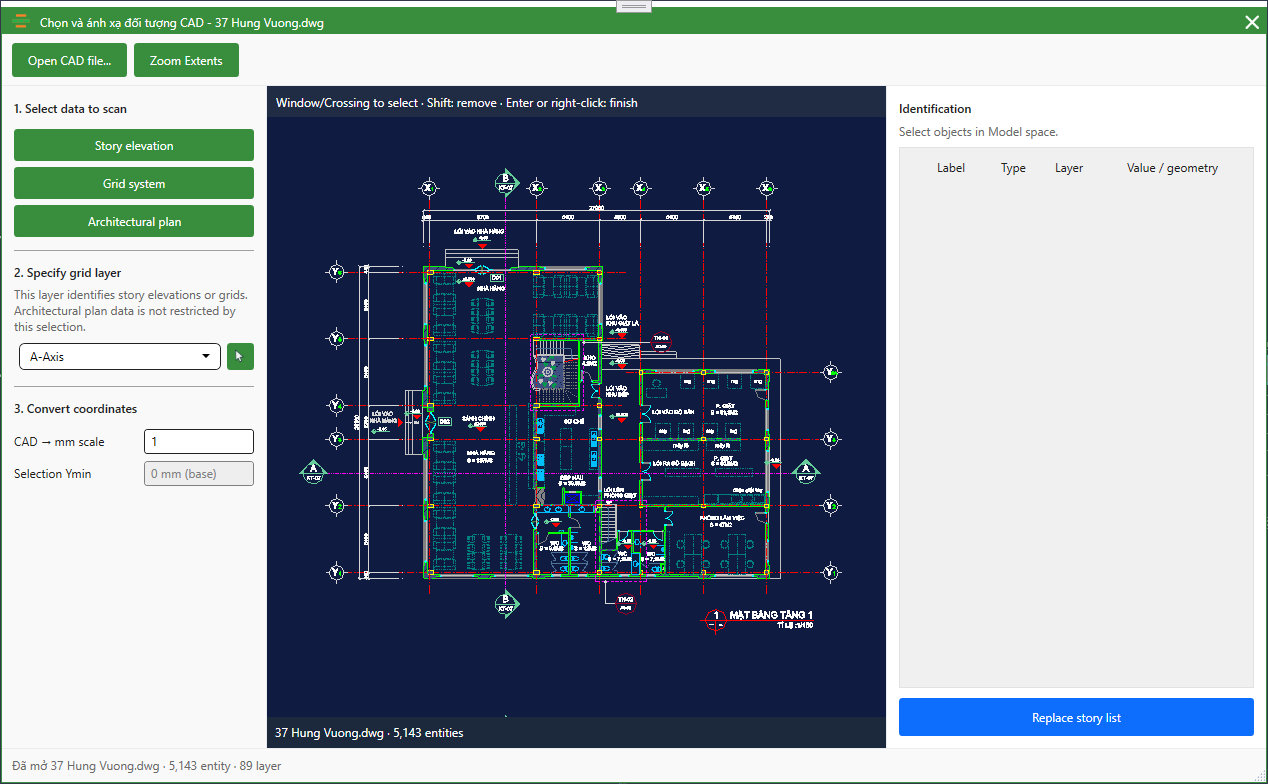

KBA DWG extraction window with a floor plan and tools for selecting grids and architectural data
KBA — extract model data from DWG drawingsEnlarge: KBA — extract model data from DWG drawings

About WEFLY Structure JSC

WEFLY Structure JSC owns the KetcauSoft brand and develops software for structural engineering and drawing production.

Our KetcauSoft product range supports building analysis, reinforced-concrete wall checks and CAD plotting. Contact us for product information, availability and English-language options.

Visit KetcauSoft

Questions about the software?

Tell us what you need for your project.

Contact us

Comming soon

RC Wall Check
